How to Choose a Universal Drain for Global Projects?

Time：2026-09-08 Author：Charlotte
0%

Table of Contents

Selecting a Universal Drain for a global project involves more than matching a product to a pipe opening. Site conditions change sharply between regions. Floor thickness, membrane systems, outlet sizes, water flow, cleaning habits, and local installation practices can all affect performance. A drain that works perfectly in a hotel bathroom may struggle on an industrial site. Small details matter.

Dr. Steven Buchberger, a recognized plumbing-systems researcher, offers a useful principle: “Good drainage design begins with understanding how water actually moves through a building.” This idea should guide every Universal Drain decision. Review the drainage layout, not just the catalog dimensions. Check material resistance against detergents, saltwater, temperature changes, and heavy foot traffic. Confirm that the product can connect with commonly used pipe systems. Ask for test data, installation drawings, and maintenance guidance. Reliable documentation is essential.

Real projects are rarely perfect. A specification may look complete, yet omit membrane compatibility or cleaning access. That gap can become an expensive delay. It is also easy to assume that “universal” means fully interchangeable. It does not. Compatibility still requires verification.

This guide examines the practical criteria behind a dependable Universal Drain. It considers engineering performance, installation experience, maintenance demands, and regional project realities. The goal is not to choose the most attractive product. It is to choose a drain that remains functional when conditions become difficult. That requires careful comparison, honest questions, and room to reconsider the first choice.

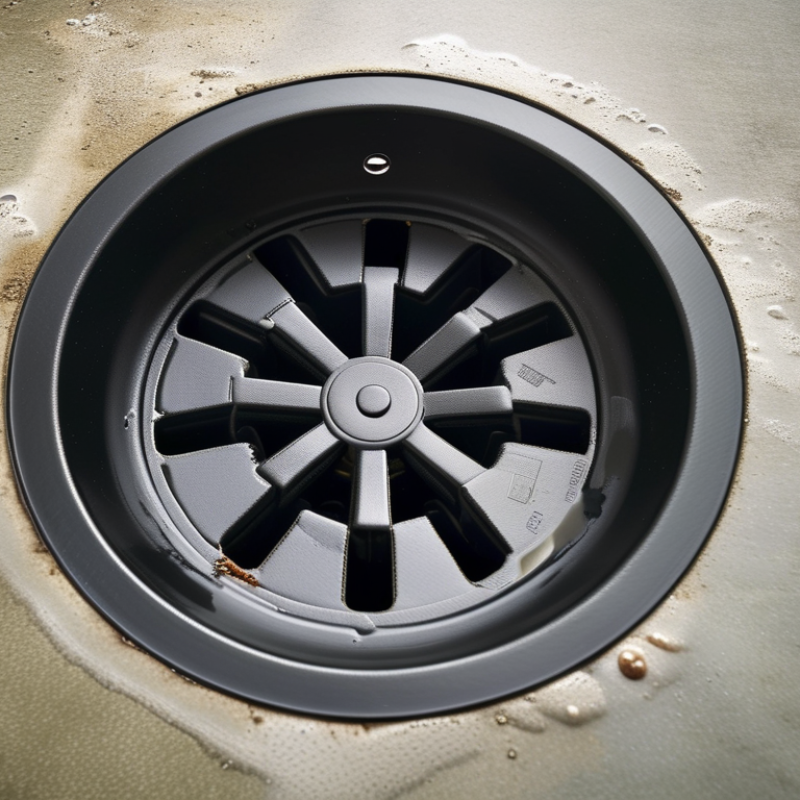

How to Choose a Universal Drain for Global Projects?
Table of Contents [Hide]
1 Define Drainage Duty: Peak Flow, DN50–DN100 Connections, and a 50 mm Trap Seal
2 Match Grate Load Classes A15–D400 to Traffic and Installation Conditions
3 Verify Hydraulic Capacity Through EN 1253 and ASME A112.6.3 Testing
4 Select Materials for pH, Chloride Exposure, and Temperatures up to 95°C
5 Confirm Local Compliance, Accessibility, Certification, and Lifecycle Cost

Define Drainage Duty: Peak Flow, DN50–DN100 Connections, and a 50 mm Trap Seal

A universal drain starts with duty, not appearance. Global projects face different codes, water pressures, and maintenance habits. The WHO/UNICEF Joint Monitoring Programme reported in 2023 that 3.5 billion people lacked safely managed sanitation in 2022. That gap makes dependable drainage a public-health issue, not merely a specification detail.

Define peak flow from simultaneous fixture discharge, not the largest outlet alone. EN 12056-2 and CIBSE Guide G use discharge-unit methods to estimate probable flow. Convert that result into tested capacity at the selected gradient. A DN50 connection may suit a basin outlet. DN75 or DN100 provides more tolerance for commercial fixtures. DN is not flow capacity. Check the grate, body, pipe slope, and blockage risk. Keep it measurable.

A 50 mm trap seal helps block sewer gases, but it can lose depth through siphonage, back pressure, evaporation, or poor venting. The 2024 United Nations World Water Development Report links sanitation resilience with climate and infrastructure stress. Specify a verified 50 mm seal, accessible cleaning, and local venting requirements. Draw a section showing the water line, grate height, and finished floor. Small errors matter. A drain can pass the calculation and still flood beside a doorway. Recheck the assumption.

How to Choose a Universal Drain for Global Projects? - Define Drainage Duty: Peak Flow, DN50–DN100 Connections, and a 50 mm Trap Seal

Preliminary selection guide for gravity drainage applications. Confirm hydraulic capacity, local plumbing requirements, waterproofing details, and installation conditions for each project.

Application Zone Typical Peak Flow Recommended Connection Required Trap Seal Drainage Duty Key Selection Considerations Preliminary Suitability
Washroom floor or utility area 0.5–1.0 L/s
30–60 L/min		 DN50 50 mm minimum Light to moderate intermittent discharge Suitable for floor washing, hand-wash areas, and small equipment discharge where the connected fixture load is limited. Recommended
Shower room or wet-room floor 0.6–1.2 L/s
36–72 L/min		 DN50 50 mm minimum Frequent intermittent discharge Check grate free area, floor falls, waterproofing interface, and whether several shower outlets may discharge simultaneously. Recommended
Commercial kitchen or food-service wash area 1.0–2.0 L/s
60–120 L/min		 DN75 50 mm minimum Higher intermittent flow with solids and grease risk Use an accessible, cleanable strainer and confirm grease-management requirements. Hot discharge temperatures and cleaning chemicals require material compatibility checks. Conditional
Plant room, laundry, or service corridor 1.0–2.0 L/s
60–120 L/min		 DN75 50 mm minimum Moderate to high intermittent discharge Allow for hose discharge, maintenance wash-down, removable grating, and sufficient access for inspection and blockage removal. Recommended
Large wet area or multi-fixture drainage zone 1.5–3.0 L/s
90–180 L/min		 DN100 50 mm minimum High intermittent flow or combined fixture discharge Verify the calculated simultaneous discharge, pipe gradient, downstream capacity, and drain body outlet alignment before selecting DN100. Conditional
Outdoor covered area or threshold drain Project-specific DN75–DN100 50 mm where foul-air protection is required Rainwater or wash-down drainage Do not size from fixture flow alone. Calculate rainfall intensity, catchment area, grate inlet capacity, overflow route, and whether the system is connected to foul drainage. Conditional
Accessible maintenance or inspection point Based on connected system DN100 preferred for access 50 mm if acting as a trapped drain Inspection, cleaning, and emergency drainage Prioritize removable covers, tool access, load rating, anti-slip performance, and compatibility with the surrounding floor finish. Conditional
Engineering notes: The flow ranges above are preliminary planning values rather than universal code limits. A 50 mm trap seal helps restrict foul-air movement, but trap-seal loss can occur through evaporation, siphonage, back pressure, or inadequate ventilation. Confirm the final drain size and trap arrangement against the governing plumbing code, hydraulic calculation, pipe slope, fixture discharge, access requirements, and local environmental conditions.

Match Grate Load Classes A15–D400 to Traffic and Installation Conditions

A universal drain should be chosen by verified load class, not appearance. EN 1433 assigns A15 to pedestrian areas and B125 to walkways, cycle paths, and car parks. C250 suits kerbside channels exposed to slow vehicle movement. D400 is intended for carriageways and vehicle lanes.

These ratings assume correct installation. A D400 grate can still fail when its frame lacks concrete support or the channel settles. Site engineers should check traffic speed, axle loads, turning movements, and construction access. The World Health Organization recorded about 1.19 million road deaths globally in 2021, making predictable road performance more than a maintenance concern. Drainage details deserve the same discipline as pavement design.

On a recent industrial access project, the drawing specified D400, but the surrounding concrete was too thin. The class looked right. The installation was not. This is where project teams often need to reflect. EN 1433 provides a useful classification system, yet local road standards, climate, and construction methods still matter. The European Committee for Standardization defines test conditions for these classes, not every field variable. Check subgrade strength, bedding depth, joint stability, and drainage outlet capacity before approval. A15 may be sufficient beside a landscaped path. It is not a safe choice where delivery vehicles occasionally cross. B125 is commonly underestimated in mixed-use sites. Traffic maps and maintenance records should guide the final selection.

Verify Hydraulic Capacity Through EN 1253 and ASME A112.6.3 Testing

A universal drain is not universal by appearance. Its hydraulic performance must survive different pipe sizes, installation depths, and rainfall conditions. The 2024 WHO/UNICEF Joint Monitoring Programme report estimates that 3.5 billion people lacked safely managed sanitation in 2022. That figure makes drainage reliability more than a specification exercise.

For global projects, request test evidence under EN 1253 and ASME A112.6.3. EN 1253 testing helps verify discharge capacity, water-seal performance, and resistance to relevant mechanical loads. ASME A112.6.3 evaluates floor and trench drain performance, including flow behavior and load-related requirements. Compare results at the same test head. A drain rated at 1.0 liters per second may perform differently when the outlet diameter, grate, or installation depth changes. Small details matter.

I once treated certificates as interchangeable. That was too optimistic. A European test report should not automatically validate an American installation. Check the exact edition, product category, test configuration, and measured flow rate. The UN World Water Development Report 2024 states that agriculture accounts for about 70% of global freshwater withdrawals, reinforcing the need to control avoidable water losses. Specify a safety margin above the calculated peak flow. Then review odor seals, access for cleaning, and local load requirements. Certification helps, but poor site installation can still defeat good laboratory results.

Select Materials for pH, Chloride Exposure, and Temperatures up to 95°C

How to Choose a Universal Drain for Global Projects?

Select Materials for pH, Chloride Exposure, and Temperatures up to 95°C

A universal drain should begin with chemistry, not appearance. Wastewater pH may shift quickly between cleaning cycles. Chloride levels can also rise after seawater contact or chemical dosing. At 95°C, these changes become more aggressive. Heat accelerates corrosion and can weaken seals, coatings, and plastic components.

The AMPP IMPACT study estimated global corrosion costs at about US$2.5 trillion annually, equal to 3.4% of global GDP. That figure supports careful material selection, but it does not replace site testing. ISO 21457 recommends evaluating pH, chlorides, temperature, flow, and contamination together. Austenitic stainless steel may perform well in mild service, yet hot chloride exposure can still cause pitting. Duplex stainless steel offers higher resistance in many cases. Nickel-based alloys may suit harsher chemistry, although their cost requires justification. Some engineered polymers handle acidic drainage well, but thermal cycling can expose hidden weaknesses.

Tips: Record minimum and maximum pH, chloride concentration, and actual surface temperature. Check gasket compatibility separately. Request immersion or cyclic testing when conditions approach 95°C. Do not trust a single laboratory result. Field conditions are rarely tidy. A simple material chart can mislead. Recheck welds, crevices, and stagnant zones, where corrosion often begins.

How to Choose a Universal Drain for Global Projects?

Material screening for pH variation, chloride exposure, and temperatures up to 95°C

PVC-U
Indicative pH 1–12; typical continuous temperature limit about 60°C. Not suitable for continuous 95°C service.
PP
Indicative pH 1–13; strong general chemical resistance, but many systems are limited to approximately 80°C.
PVDF
Indicative pH 1–13; excellent resistance to many acids, alkalis, and chlorides, with typical temperature capability above 95°C.
316L Stainless Steel
Broad temperature capability, but chloride pitting and stress-corrosion risks require careful concentration and temperature review.
904L Stainless Steel
Higher resistance to many acidic and chloride-bearing environments than 316L, but site-specific corrosion validation remains necessary.

The chart uses indicative published material ranges and a relative chloride-resistance screening score from 1 (lower) to 5 (higher). Actual drain selection must verify chemical concentration, chloride level, exposure time, mechanical loading, joining method, and the complete system rating at 95°C.

Confirm Local Compliance, Accessibility, Certification, and Lifecycle Cost

How to Choose a Universal Drain for Global Projects?

Confirm Local Compliance, Accessibility, Certification, and Lifecycle Cost

A universal drain should fit local conditions, not merely different pipe sizes. Project teams must verify drainage rules, fire requirements, hygiene standards, and installation practices in each market. A design accepted in one country may fail inspection elsewhere. Check approval documents before finalizing drawings. Keep the evidence organized.

Accessibility also affects long-term performance. Maintenance staff need safe access to the trap, grate, and surrounding floor. In a busy kitchen, a removable grate can reduce cleaning time. In a hospital, smooth surfaces and controlled water flow may support stricter hygiene routines. Ask who will service the drain, and how often. Their experience matters.

Certification should match the project’s location and risk level. Confirm testing methods, material grades, load ratings, and corrosion resistance. Do not rely on a certificate with unclear scope or an outdated issue date. I have seen attractive cost comparisons ignore replacement labor and shutdown time. That is a costly mistake.

Lifecycle cost deserves practical measurement. Compare purchase price, installation hours, cleaning frequency, spare parts, water damage risk, and expected service life. Stainless materials may cost more initially, yet perform better in wet, chemical-heavy areas. Still, higher cost does not guarantee suitability. One assumption deserves review: a “universal” product may require local adapters, special tools, or trained installers. Those details can change the final budget. Test the installation on a small section first. Verify it under real site conditions.

FAQS

: How should peak drainage flow be calculated?

: Calculate simultaneous fixture discharge, not only the largest outlet. Use discharge units and convert them into tested capacity. Measure the real flow.

Which connection size is suitable for different fixtures?

DN50 may suit a basin outlet. DN75 or DN100 offers more tolerance for commercial fixtures. Pipe size alone does not prove capacity.

What should be checked besides the connection diameter?

Check the grate, drain body, pipe slope, outlet capacity, and blockage risk. A large pipe can still flood. Small errors matter.

Why is a 50 mm trap seal important?

A verified 50 mm water seal helps block sewer gases. Siphonage, back pressure, evaporation, and poor venting can reduce its depth. Not always.

How can trap-seal performance be checked during design?

Draw a section showing the water line, grate height, and finished floor. Include accessible cleaning and local venting requirements. Recheck the assumptions.

Which load class suits a pedestrian or vehicle area?

A15 generally suits landscaped paths and pedestrian areas. B125 suits walkways, cycle paths, and many car parks. C250 suits kerbside traffic.

When is a D400 grate appropriate?

D400 suits carriageways and vehicle lanes with regular vehicle loading. Check axle loads, turning movements, site access, and local requirements. Looks can deceive.

Why can a correctly rated grate still fail?

The frame needs adequate concrete support, bedding, and joint stability. Thin surrounding concrete or settlement can cause failure. The class looked right, but installation was not.

How should materials be selected for hot or aggressive drainage?

Record minimum and maximum pH, chloride levels, flow, contamination, and surface temperature. Check performance up to 95°C when required. Chemistry changes quickly.

Are corrosion-resistant materials always reliable near hot chlorides?

No material is automatically safe. Some stainless steels may pit, while duplex metals or engineered polymers may perform better. Check seals, welds, crevices, and stagnant zones. A laboratory result may not reflect the field.

Conclusion

Choosing a Universal Drain for global projects requires more than selecting a standard floor outlet. Begin by defining the drainage duty, including expected peak flow, DN50–DN100 connection sizes, and a 50 mm trap seal to control odors and maintain reliable performance. The grate must also match the environment: A15 may suit pedestrian areas, while higher classes up to D400 are appropriate for locations exposed to vehicles or heavier traffic.

Hydraulic performance should be verified through testing aligned with EN 1253 and ASME A112.6.3. Material selection must reflect local pH levels, chloride exposure, cleaning chemicals, and operating temperatures of up to 95°C. Before final approval, confirm local compliance requirements, accessibility for maintenance, relevant certification, and total lifecycle cost. A well-planned Universal Drain can provide dependable flow management, long service life, and easier standardization across different installation conditions.
